• Does NOT include C4 Hawse License Plate Mount for front license plate; if needed please
• For Powder Coating within Canada please
• *Not compatible with models equipped with TSS*
• Hawse mount not compatible with Factor 55 Flatlink or Ultrahook
• Bumper offers more clearance for better approach angles and makes it easier to fit larger tires.
• The bumper is made from 3/16″ laser-cut P&O steel with 1/4″ thick mounting plates.
• 3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.

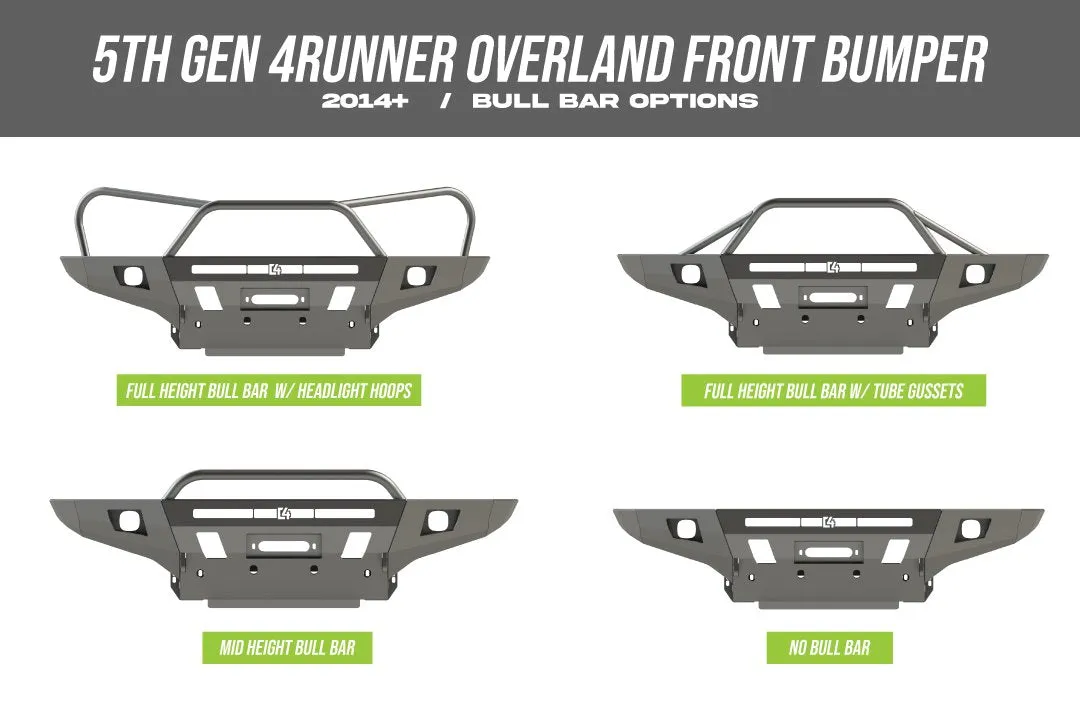

• Bull bar tubing is .120 wall 1 3/4″ diameter HREW tubing.
• Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (Smittybilt X20, and Warn Zeon and VR series are all common winches that fit)
• We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
• Weight: 135lbs without bull bar, 140lbs with mid-height bull bar, 150lbs with full height bull bar, 155lbs with full height bull bar and headlight hoops.
• Can be ordered with or without 30″ LED light bar cutout. Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). All other brands of lights not guaranteed to fit properly.
• This bumper requires cutting the original plastic bumper cover to install.
• Installing this bumper also requires removing the original steel power steering cooler lines and replacing them with the power steering cooler kit provided with the bumper. Installation of the cooler kit is straight forward and does not require draining the power steering system. Replacing the power steering lines provides more room for the winch and also removes the low hanging “U shaped” portion of the lines near where the bumper bolts to the frame so that the lines are not exposed to obstacles and debris.
• Optional add-ons:
• Washer Tank Skid Plate click

*Powder coating only available within Canada

Contact the store, or [email protected] so we can help you get the right bumper for your build!
