Product Details
＋

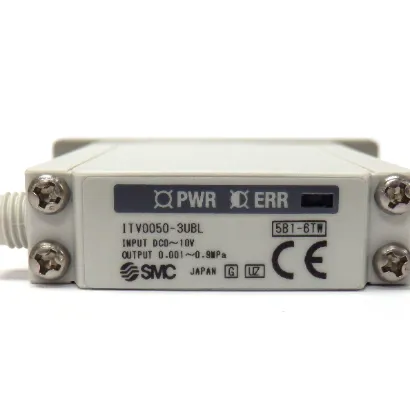

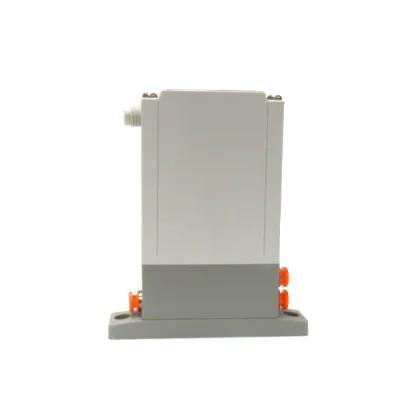

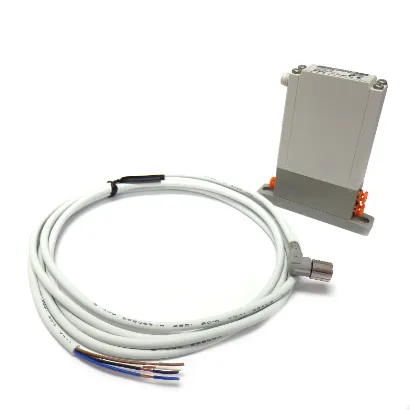

This is a SMC Compact Electro-Pneumatic Regulator w flat bracket. Its part number is ITV0050-3UBL. This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: SMC
- Part # ITV0050-3UBL
- Minimum supply pressure: Set pressure 0.1 MPa
- Maximum supply pressure: 1.0 MPa
- Set pressure range:0.001 to 0.9 MPa
- Power supply Voltage: 24 V DC ±10%, 12 to 15 V DC
- Power supply Power supply: Power supply voltage 24 V DC type: 0.12 A or less
- Input signal Voltage type: 0 to 5 V DC, 0 to 10 V DC
- Input signal Current type: 4 to 20 mA DC, 0 to 20 mA DC (sink type)
- Input impedance Voltage type: Approx. 10 k Ω
- Input impedance Current type: Approx. 250 Ω
- Linearity: Within ±1% (F.S.)
- Hysteresis: Within 0.5% (F.S.)
- Repeatability: ±0.5% F.S. or less
- Sensitivity: 0.2% F.S. or less
- Temperature characteristics: Within ±0.12% (F.S.) / °C
- Operating temperature range: 0 to 50°C (no condensation)

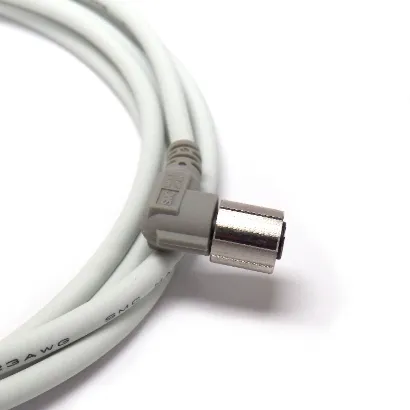

- Connectors: right angle
- Error Indication: Led
